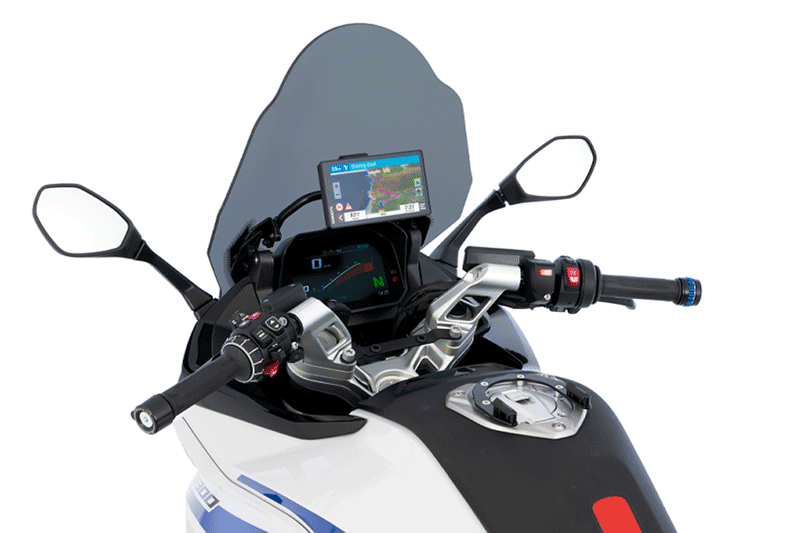

Wunderlich navigation relocation bracket for the BMW R 1300 RS – positions the BMW Navigator – or other navigation devices and smartphones – in the rider’s natural line of sight

Function and product features

• Our navigation relocation bracket makes it possible to
  • position the BMW Navigator in the rider’s natural line of sight above the TFT display
  • attach numerous commonly used mounting systems for navigation devices or smartphones, also in the rider’s natural line of sight above the TFT display

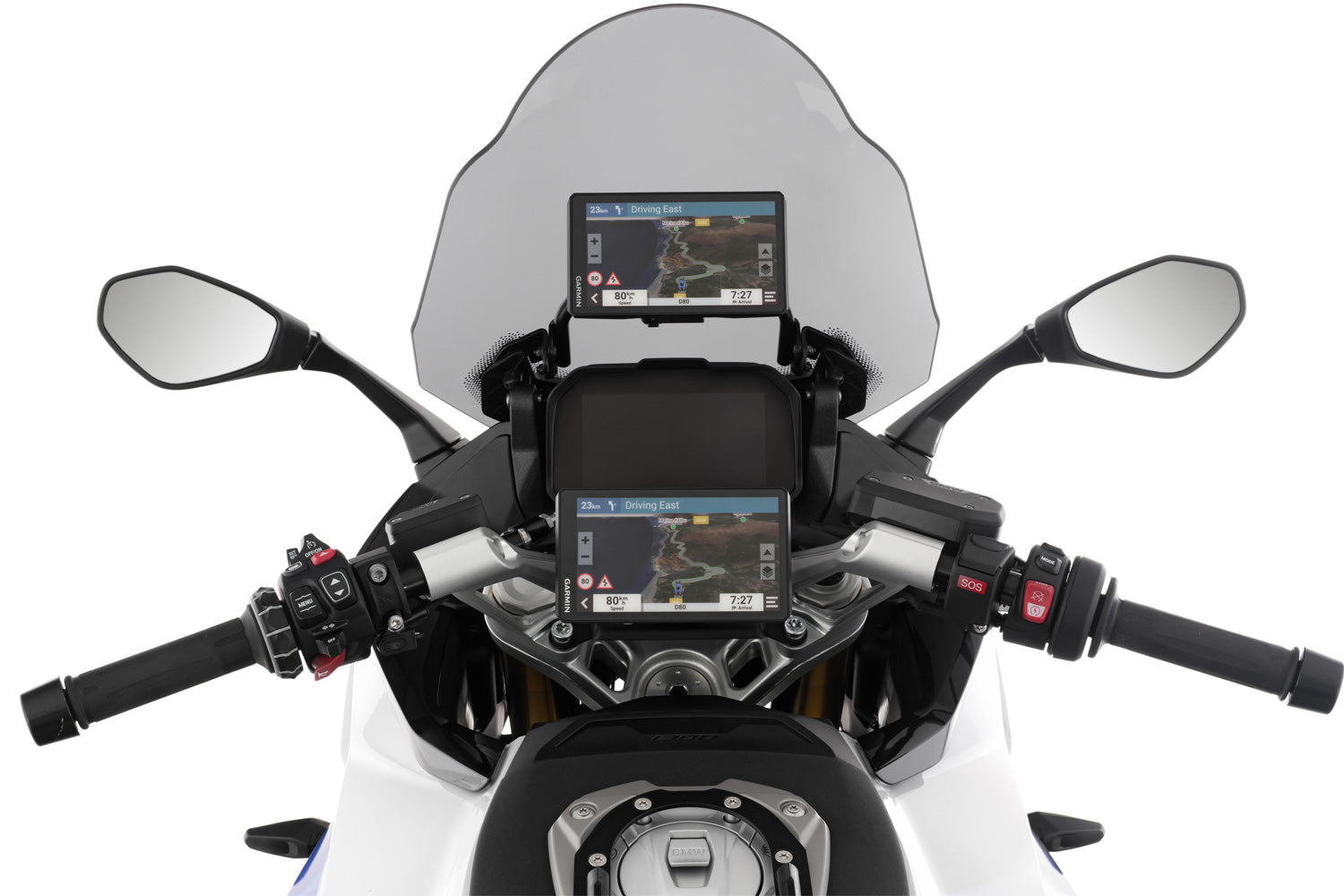

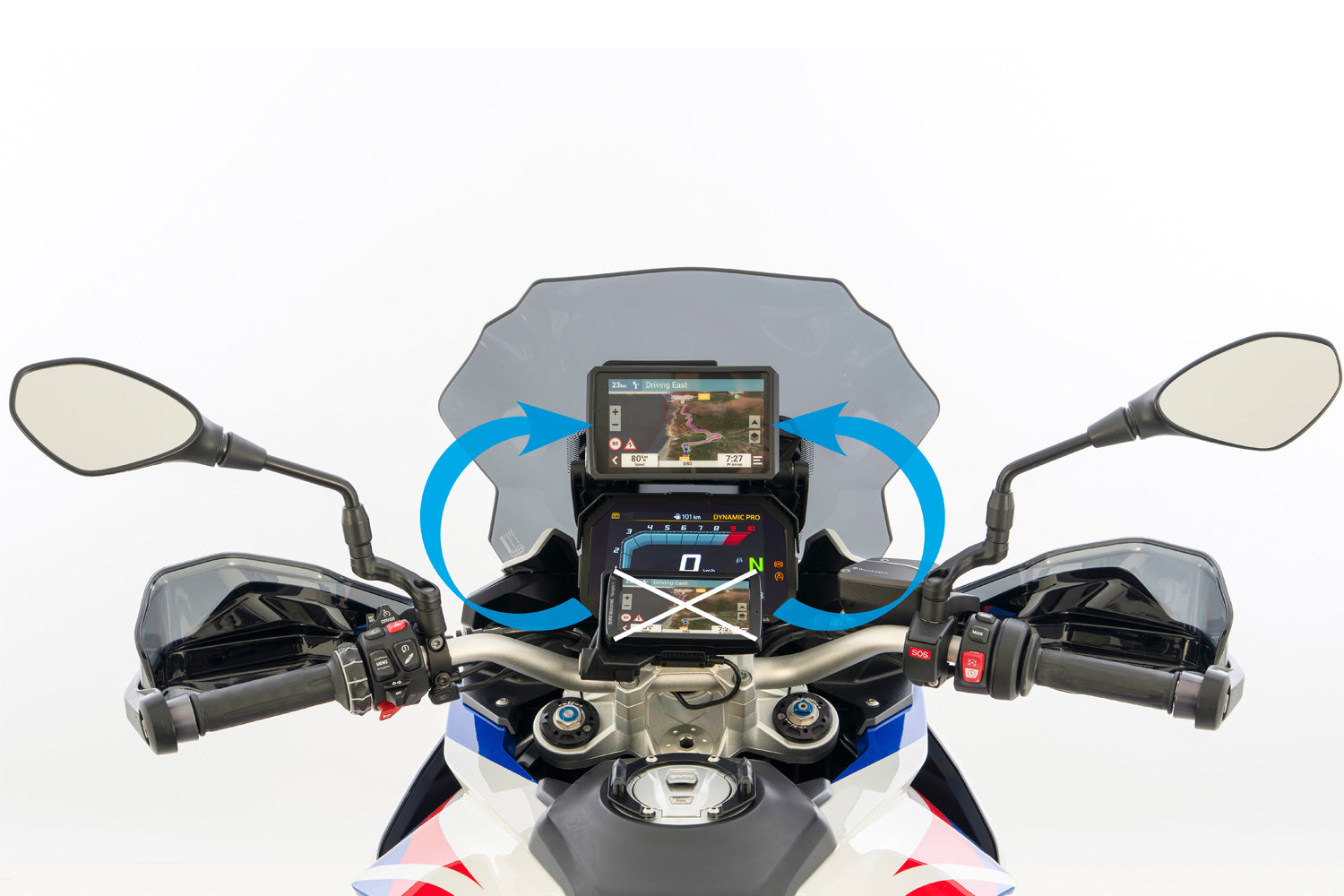

• Relocation of the BMW Navigator above the TFT display
  • By contrast, the original holder is located below the TFT display and forces the rider to tilt their head downwards when reading or operating the device

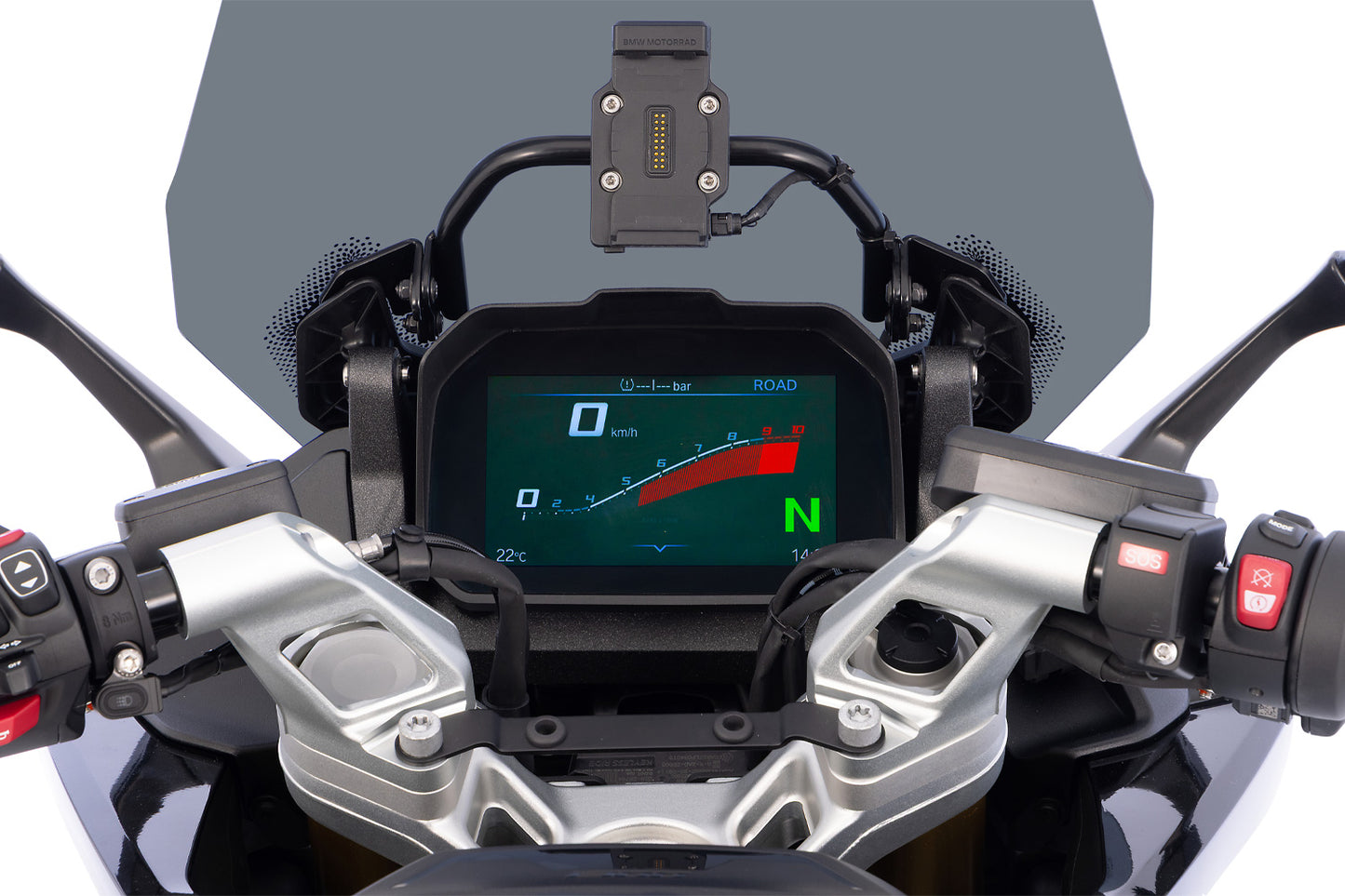

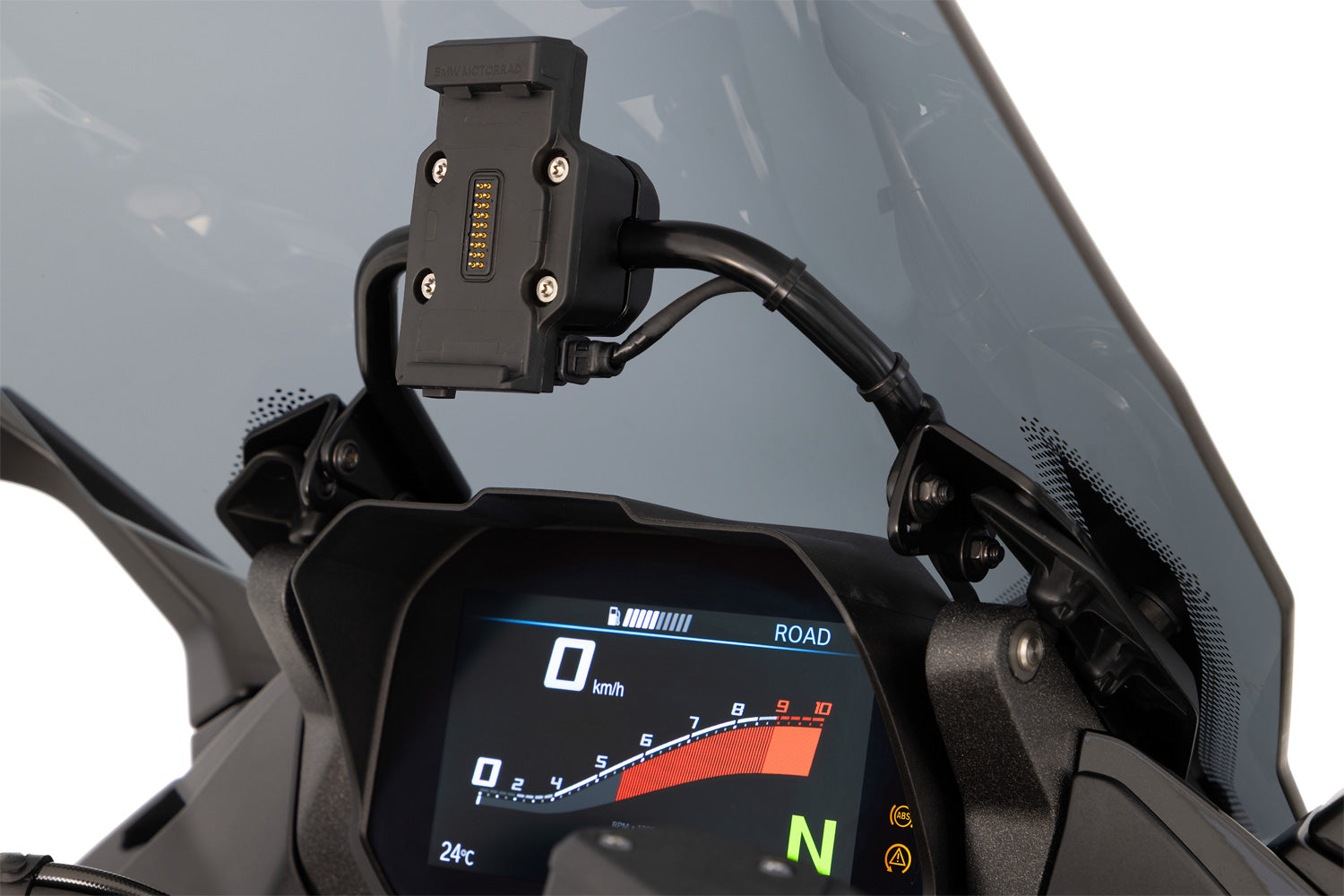

  • To relocate the BMW Navigator above the TFT display, the active section of the original navigation holder—the docking station that accommodates the BMW Navigator—is simply mounted on the navigation relocation bracket
• Important note regarding relocation of the BMW Navigator:
  A longer connection cable* is required to relocate the BMW Navigator to its new installation position. This is not a plug-and-play cable extension, but involves replacing the existing connection cable.
  As the connector is located underneath the tank, the relevant parts of the motorcycle must be removed in order to replace the cable. Please therefore allow for the additional installation work involved.
  We recommend having the installation and/or cable replacement carried out by a specialist workshop. Further information on installation and the work required to relocate the navigation system/device carrier can be found in our installation instructions under the “Instructions / Notes” button.
  * BMW part number (61125B4E229)

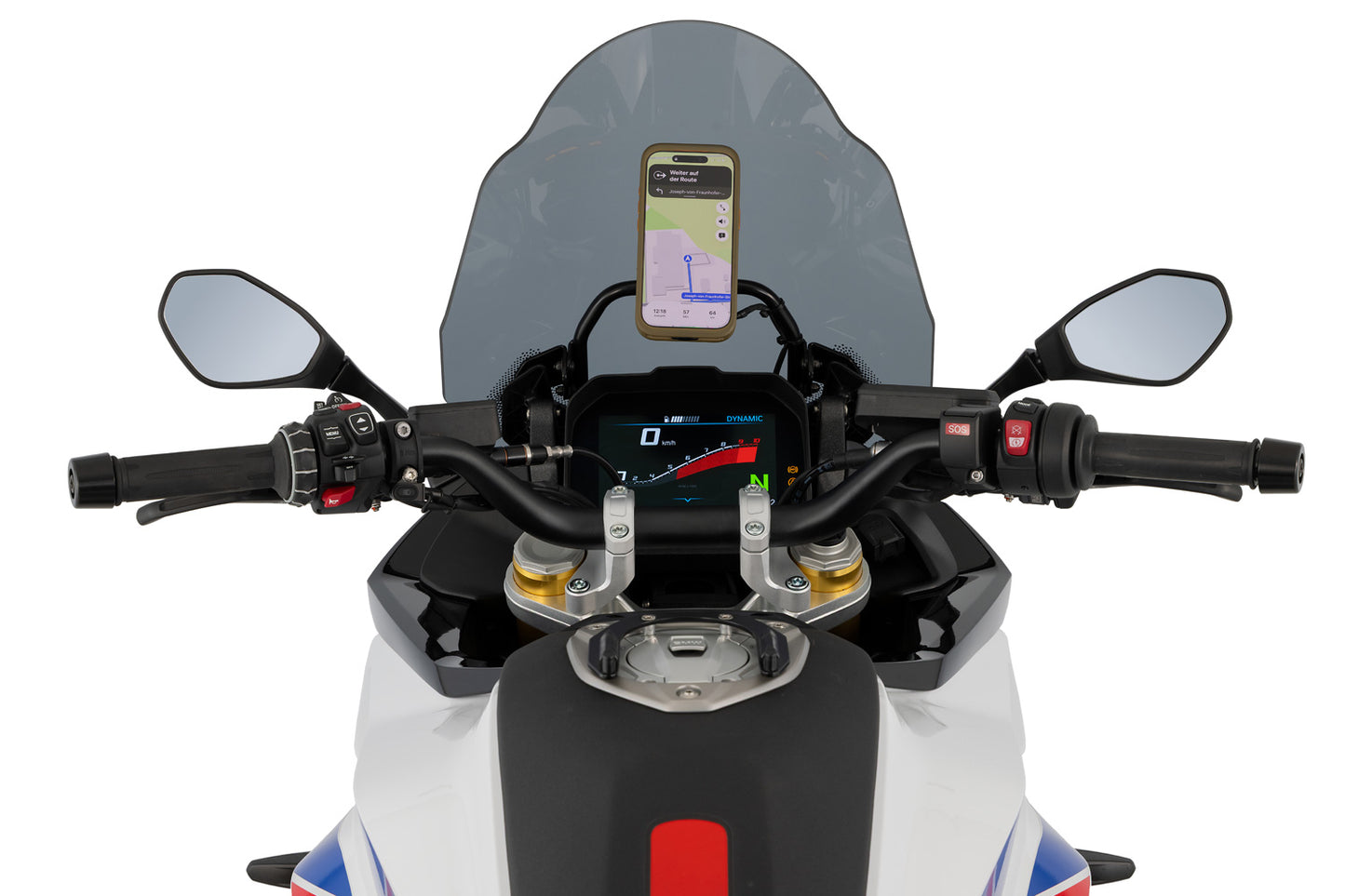

• The navigation relocation bracket is compatible with numerous commonly used mounting systems designed for 12 mm diameter round tubes for navigation devices and smartphones
  for example, for mounting
  • Peak Design Mirror Mounts (#39001-641 with charging function or #39001-625)
  • SP-Connect Smartphone System Mirror Bundles (#45151-008 or #45151-022)
  • the universal MULTICLAMP round tube adapter (#21176-102)
  • the universal MULTICLAMP adapter for the universal device carrier (#45155-402)
  • the navigation holder for device carriers with a 12 mm round tube diameter (#21176-302)
• Our visually and operationally ergonomic arrangement supports relaxed riding, enhances comfort and simultaneously improves active safety, as the road remains in view while navigating
• Helps prevent fatigue
• The original windscreen adjustment can continue to be used as usual
• Easy and secure installation on the windscreen support

Technical specifications

• Material
  • Steel, precision-manufactured to a high standard, black powder-coated
• Dimensions
  • Tube diameter 12 mm
  • Clamping width 90 mm
• Colour
  • Black

Your Wunderlich advantages

• Wunderlich premium product
• Wunderlich Design. Functional and integrated.
• Made in Europe
• Wunderlich 5-year warranty

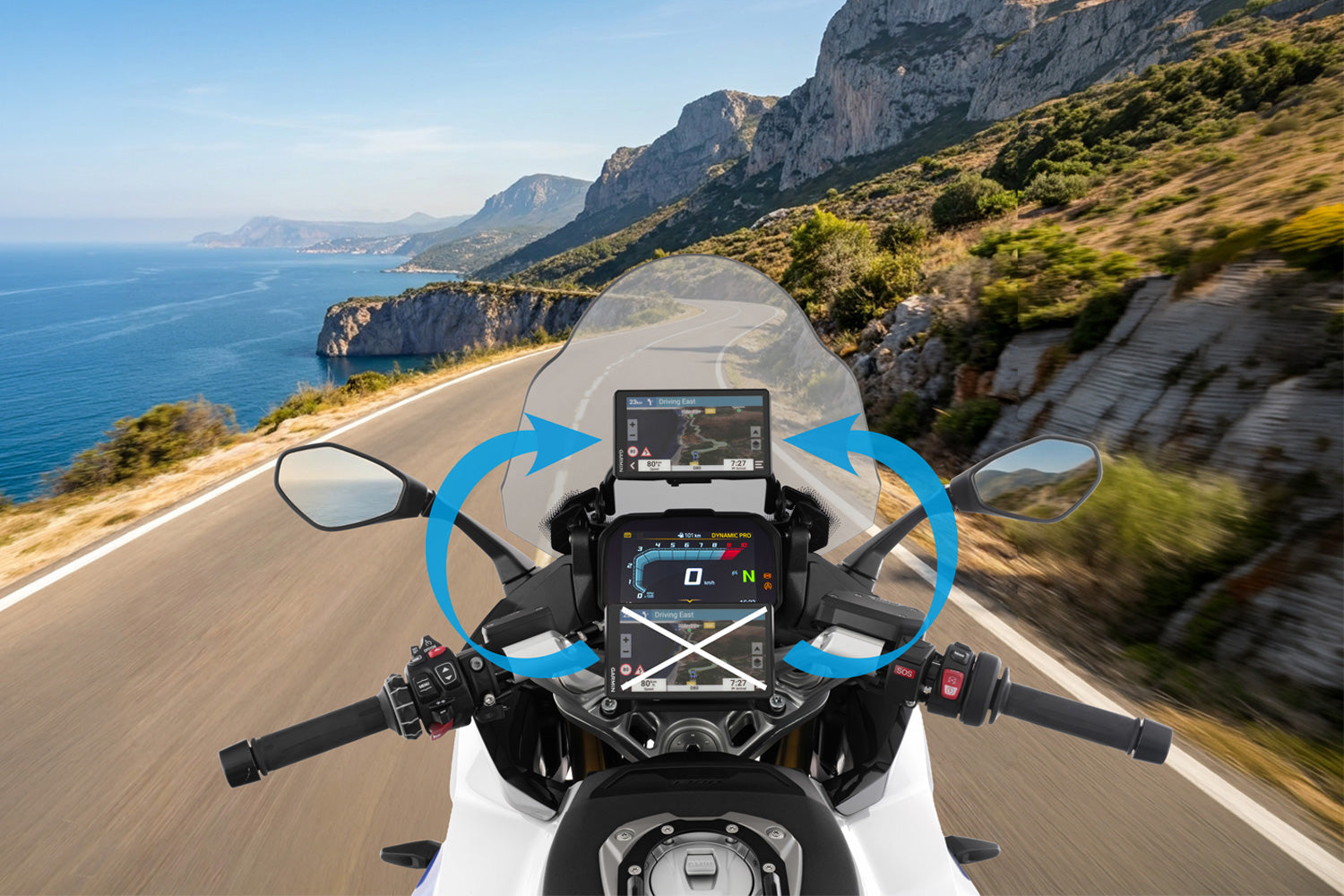

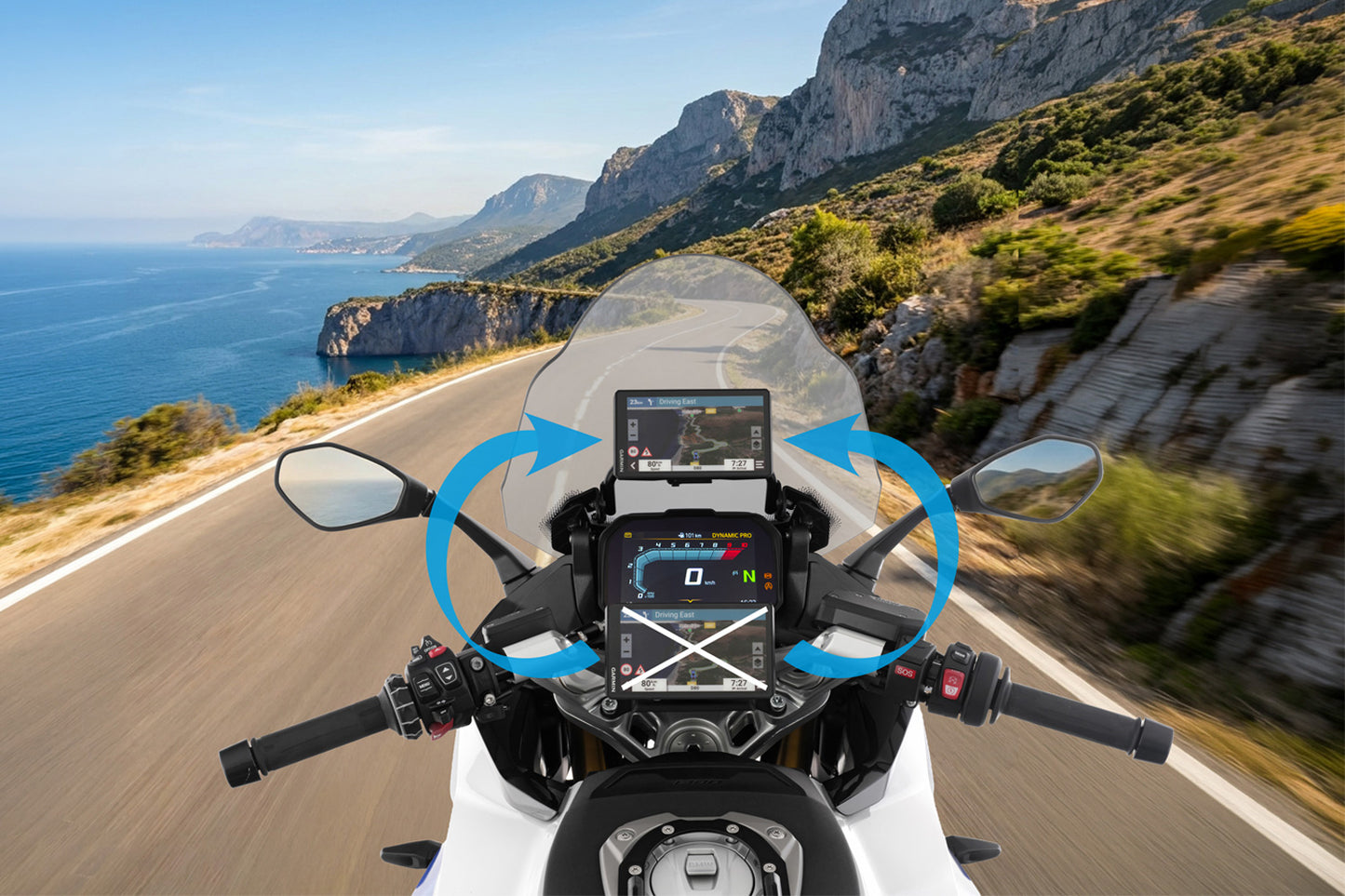

Double the ergonomics: optimal positioning for visibility and operation provides greater comfort when riding, navigating and using the device

Regardless of whether you intend to use the navigation relocation bracket for the BMW Navigator, another navigation device or a smartphone, it positions the respective device ergonomically in the rider’s natural line of sight, allowing relaxed and, above all, safe riding. This means the rider can keep both the road and the navigation device in view at all times. This proven arrangement provides noticeably greater comfort when riding, navigating and operating the device, helps prevent premature fatigue and increases active road safety.
Installation is straightforward on the windscreen support. The device holder is made of high-quality, black powder-coated steel.
Important information regarding relocation of the BMW Navigator: Additional installation work is required to relocate the BMW Navigator to its new mounting position. Please refer to the installation instructions.
