Exclusively for the BMW R 1300 R and RS with original BMW luggage rack and/or pannier holders:

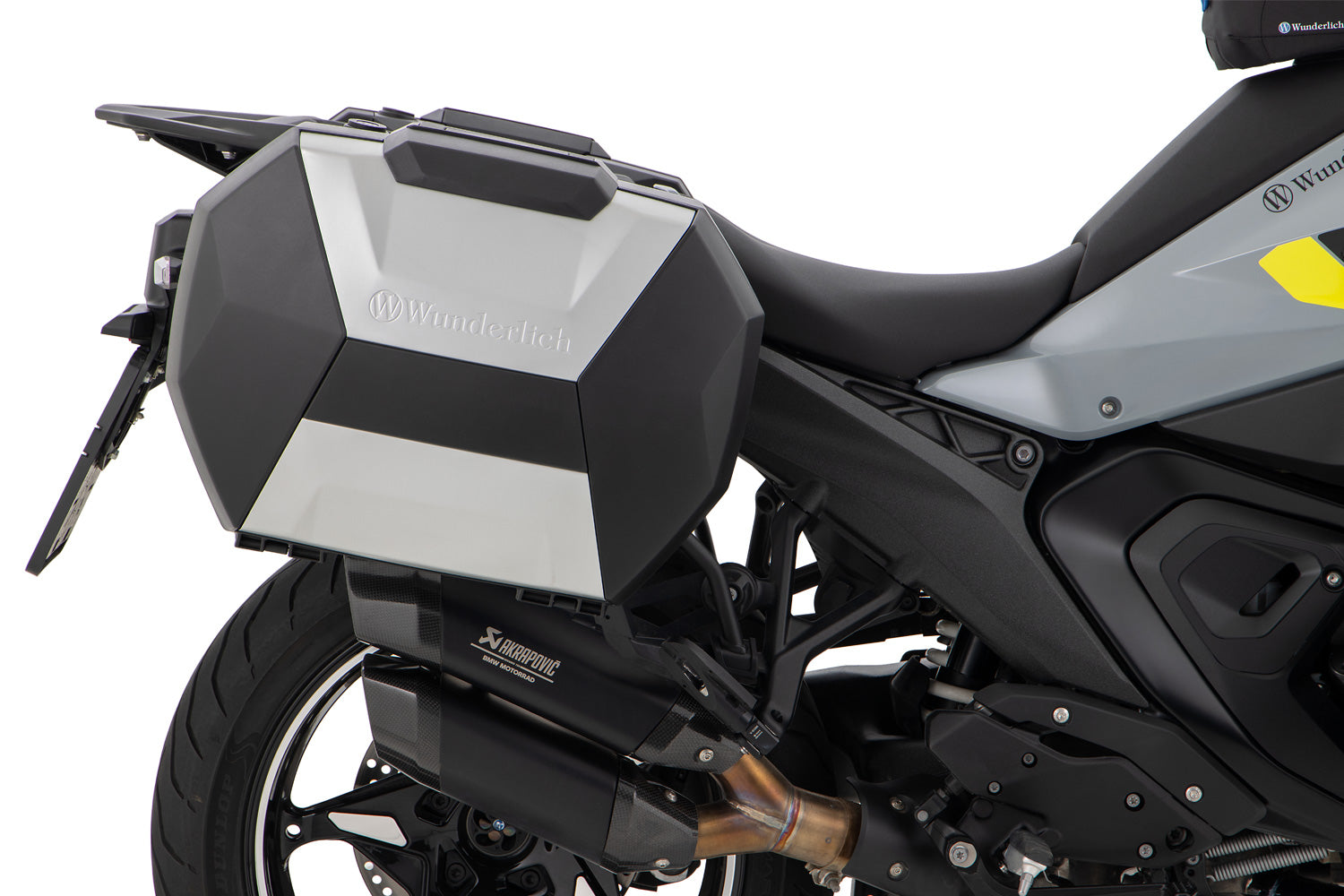

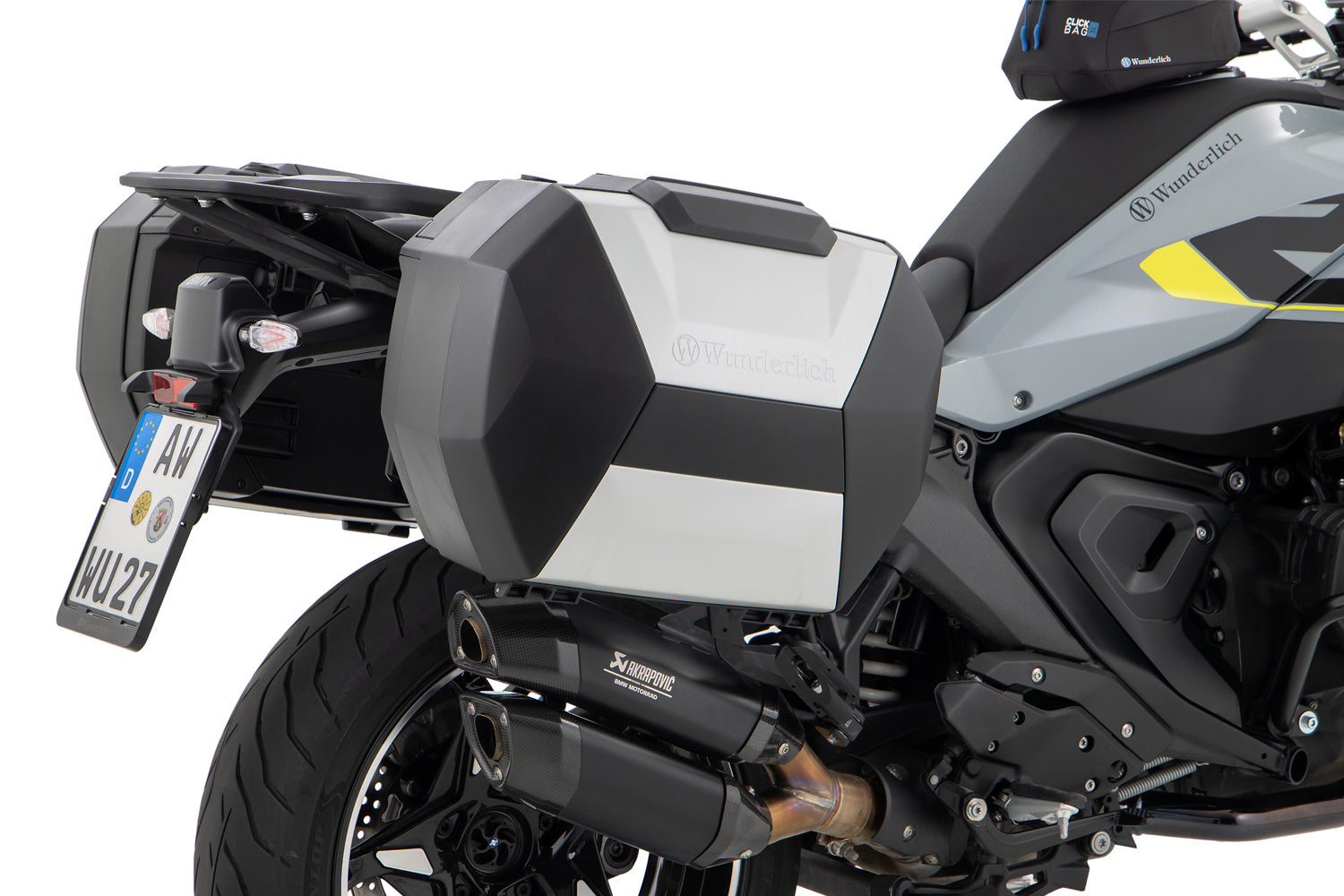

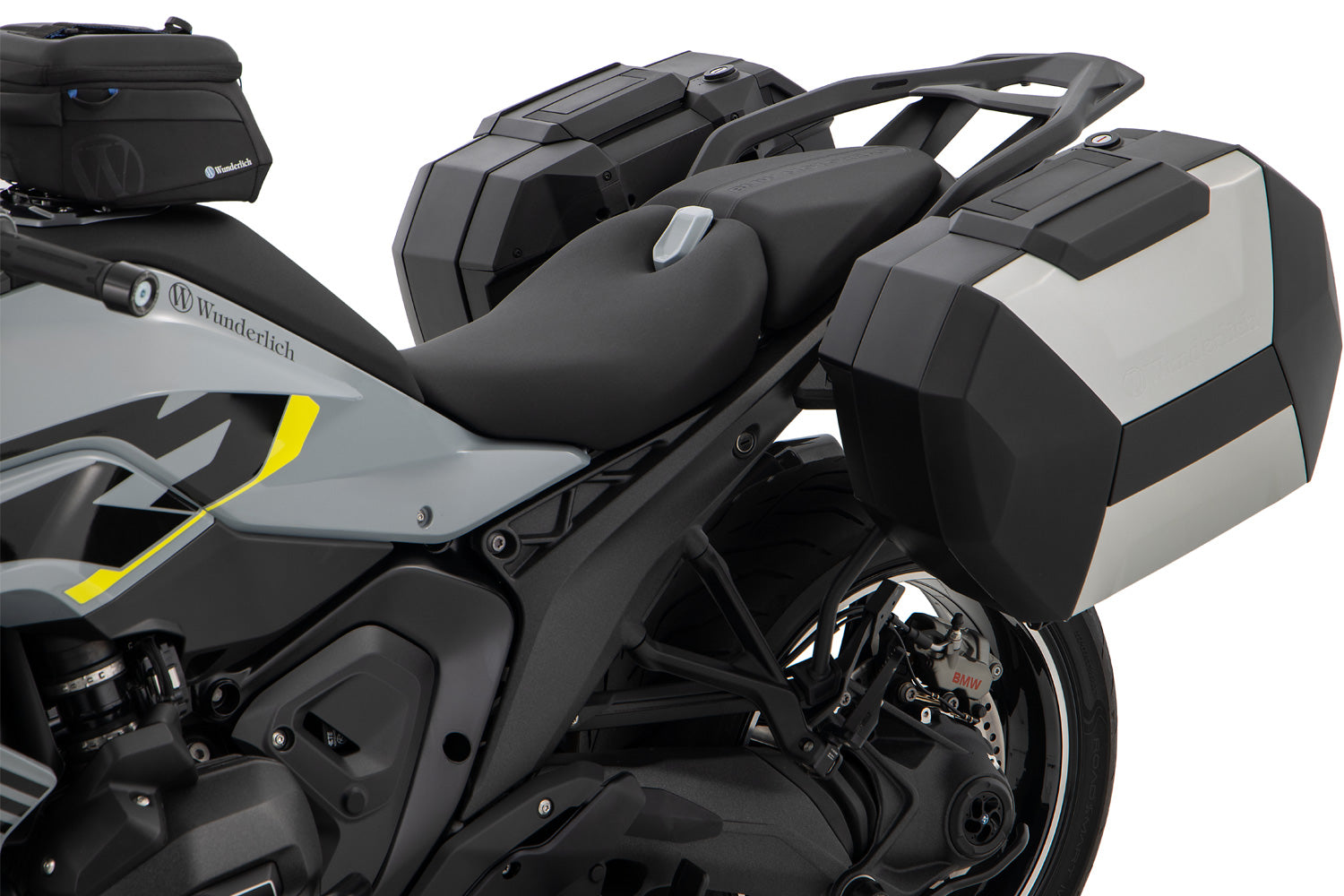

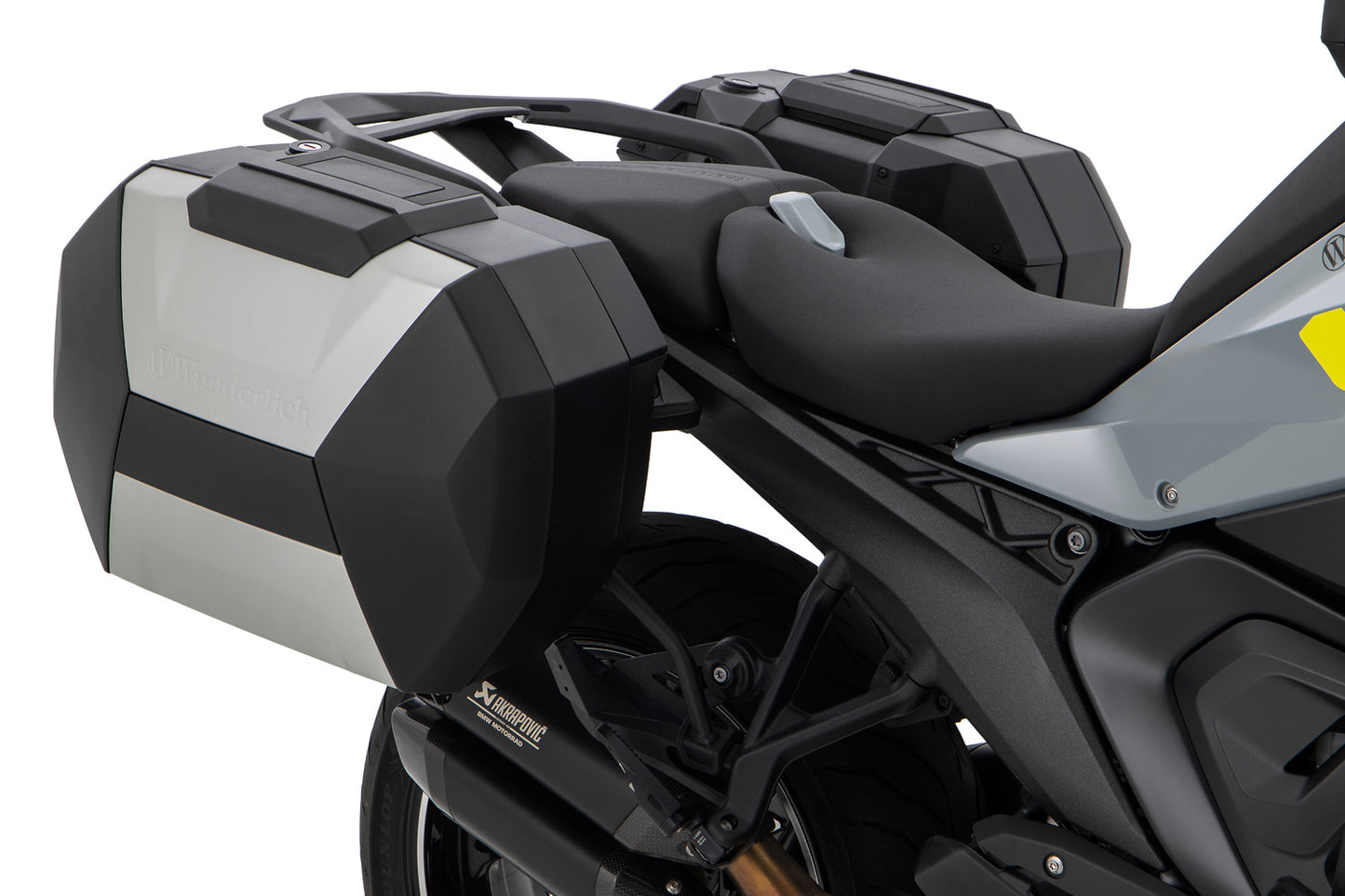

The Wunderlich X-CASE X30 panniers in a bicolour design, supplied as a set with the X-RACK light carrier

Wunderlich X-CASE X30 variable pannier set, bicolour look in black/aluminium

Design meets smart functionality: the sporty, compact pannier set offering maximum comfort, maximum flexibility and 60 litres of storage capacity

From the perspective of the dynamic roadster or sport touring rider who expects significantly greater touring capability from their R 1300, luggage components must meet the following requirements:

• They must be lightweight,
• offer a slim silhouette to minimise wind resistance,
• be mounted close to the centre of gravity and, of course,
• be functional and
• versatile in use.

Our X-CASE X30 variable pannier set meets all these requirements.

Function and product features

• Sporty and compact when you want it – generous when you need it: the slim variable pannier set offers up to 50 % more volume in an instant!
• X30: the innovative X-CASE variable pannier set combining elegant design with outstanding functionality.
• The bicolour look of the side panels makes the panniers real eye-catchers.
• Panniers extendable by 70 mm – flexible to adapt to your needs.
• Volume expandable by 50 % thanks to the integrated extension mechanism.
• More storage space when required – a slimmer profile when not in use.
• Streamlined silhouette ideal for urban traffic – reduced risk of contact in traffic jams, parking or on ferries.
• Advantages when used without the extension:
  • More agile handling thanks to optimised centre of gravity.
  • Reduced sensitivity to wind due to lower aerodynamic drag.
• The most compact panniers capable of holding a modular helmet.
• Protection against dust and moisture – ideal for everyday use and touring.
• Two internal nets per pannier for secure and organised storage.
• Two matching keys included in the delivery.

Optionally available: lock cylinders that can be coded to the vehicle key – see below under Option.

Smart Lock locking system – secure, comfortable and intuitive operation. Panniers can be mounted, removed or opened within seconds. Fold-out handles for convenient carrying.

Option

Optionally available: lock cylinders that can be coded to the vehicle key

With the codable locks, the luggage system can be conveniently locked using the vehicle key. Since vehicle keys are not interchangeable, we offer security lock cylinders that can be individually coded to your vehicle key and then installed. A coding manual is included, as the coding must be performed with the original key. This eliminates the often annoying need to carry extra keys. Please order separately: #30164-200.

Technical data

• Material
  • Body
    • Plastic
  • Side covers
    • Plastic combined with deep-drawn aluminium panels
• Dimensions
  • Width: 50 cm
  • Height: 39 cm
  • Depth: 27 cm (extended: 34 cm)
• Volume
  • Without extension: 20 litres
  • With extension: 30 litres
• Payload
  • Up to 10 kg
• Colour
  • Black (body)
  • Aluminium-coloured panels

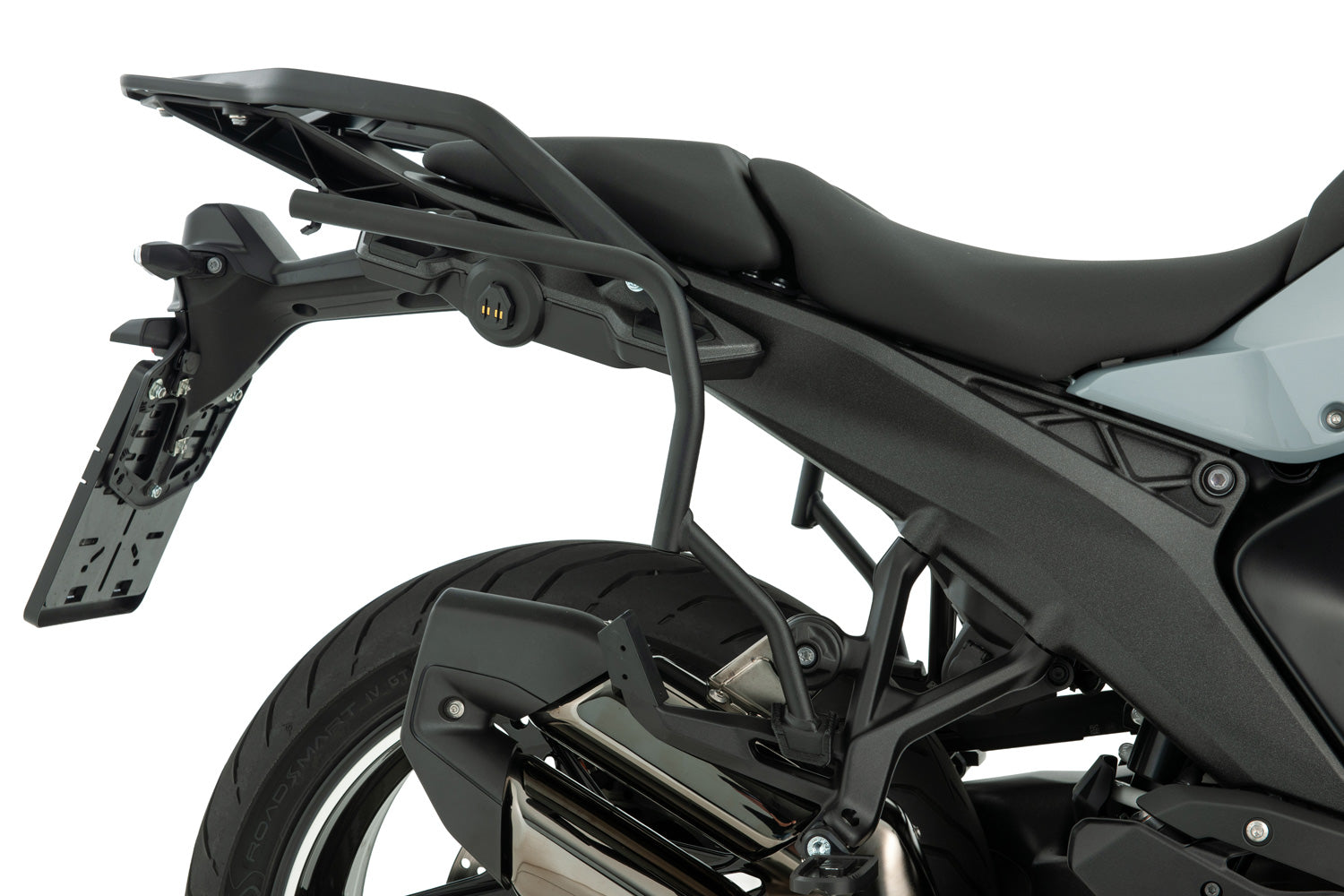

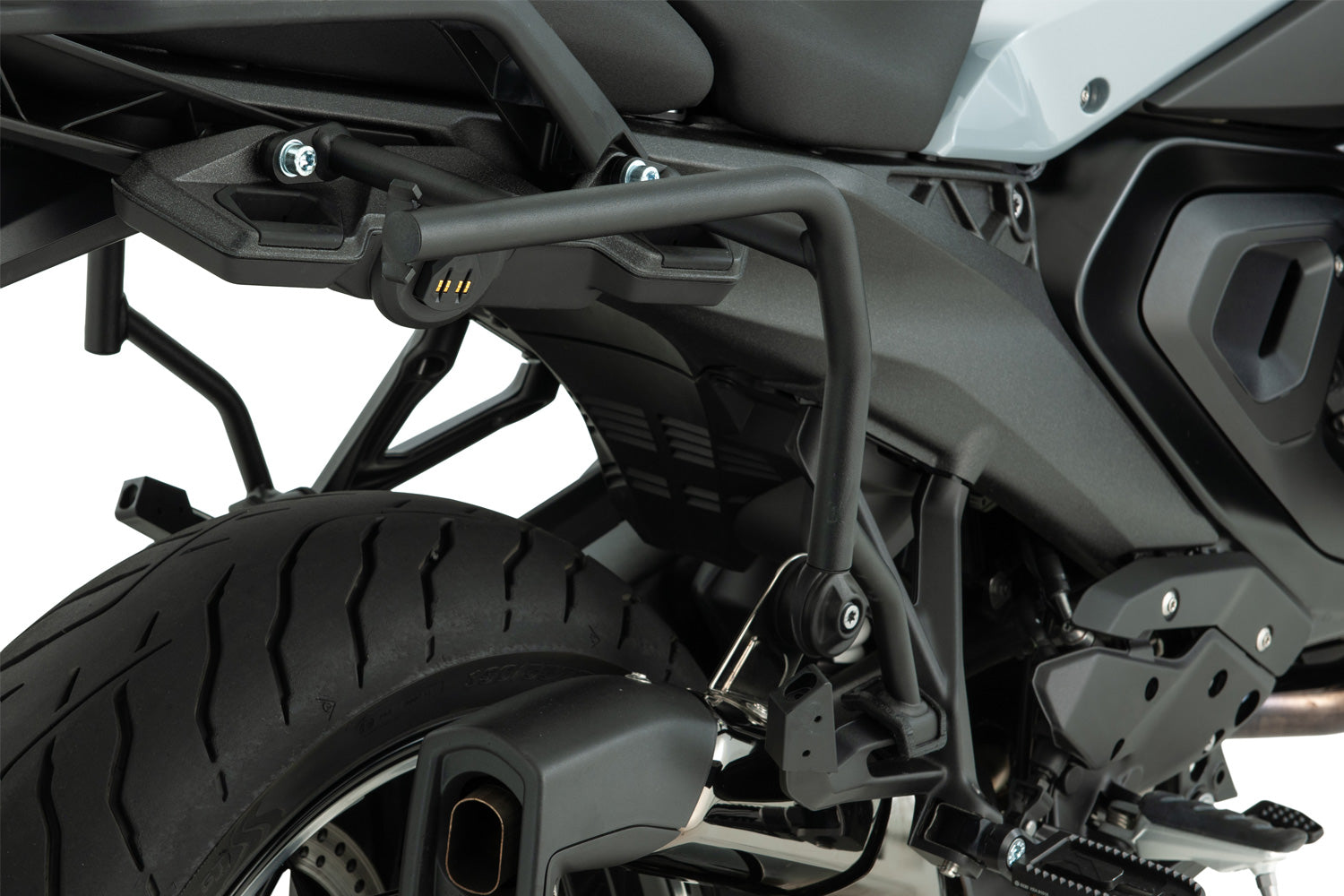

The X-RACK light carrier – fits perfectly in combination with the original BMW luggage rack on the R 1300 R and RS

Function and product features of the X-RACK light carrier

• The X-RACK light carrier serves as the base for the Wunderlich X-CASE X30 variable pannier set.
• X-RACK light – a carrier mounted close to the centre of gravity for perfect handling and a slim silhouette.
• The X-RACK light carrier accommodates the X-CASE X30 pannier set with a solid, secure 3-point mount consisting of two bolting points and a positive locking connection, making installation particularly easy.
• The model-specific L-shaped carrier integrates discreetly and almost invisibly into the bike’s side line.
• The 20 mm precision steel tube provides reliable mechanical stability – even under full load.
• The low centre-of-gravity mounting ensures
  • perfect handling, optimum riding safety and a slim silhouette – a clear advantage when manoeuvring.
• Also compatible with the Wunderlich X-BAG side bags.

Note for the BMW R 1300 RS

• If only the BMW luggage rack is installed without the BMW pannier holders, the additional fitting kit #15610-012 is required.

Technical data

• Material
  • Precision steel tubing, accurately and carefully manufactured, fine-textured powder-coated.
• Dimensions
  • Tubing diameter: 20 mm
• Maximum load capacity
  • 10 kg per side
• Colour
  • Black

Exclusively for the BMW R 1300 R and RS – exclusively from Wunderlich

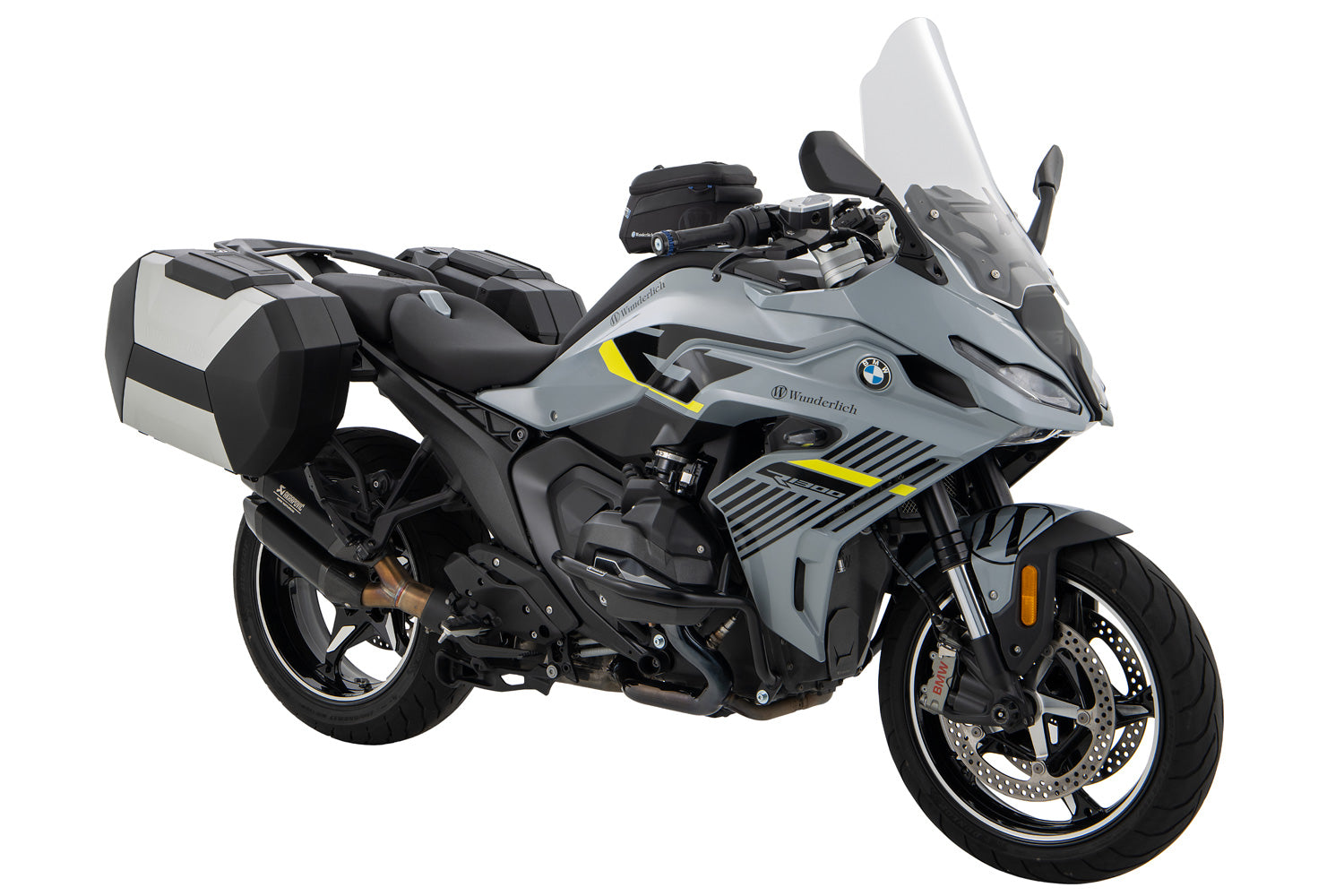

The Wunderlich X-CASEs, supplied as a set with the X-RACK light carrier, make the BMW R 1300 R and RS absolutely ready for touring.

Your Wunderlich advantages

• Made by Wunderlich
• Riding 365
• Wunderlich 5-year warranty.

Scope of delivery

• X-RACK light carrier and X-CASE X30 pannier set in bicolour design, consisting of one pannier for the right and one for the left side.

A must-have for all who wish to combine the dynamics of their roadster or sport tourer with smart touring performance. Sporty and compact when you want it – generous when you need it.
